Overview:
Kraftform Kompakt VDE tool set with the 11 most important tools for switch cabinet couplings. One 7516 VDE Safe-Torque Speed torque screwdriver with five selectable maximum tightening torques (2.4; 2.8; 3.2; 3.6; 4.0Nm), with a fixed position (Torque Lock) for unlimited loosening and tightening moments, digital torque value display, reliable slip-over mechanism when the set torque is reached, accuracy ±10%, one 817 VDE bitholding screwdriver. Torque screwdriver and bitholding screwdriver solely for Wera VDE blades. 9 VDE blades (each 157mm length) with Take it easy tool finder: colour coding by profile and laser-engraved size indication, with reduced blade diameter (iS), so that even low-lying screw and spring elements can be easily reached and operated. In a robust textile box for neat storage and convenient transport.
Features:
- Tool set with the 11 most important tools for switch cabinet couplings, includes blades for square head screws
- Individually tested tools as per IEC 60900
- VDE bladeholding torque screwdriver 7516 with 5 pre-set values (2.4; 2.8; 3.2; 3.6; 4.0Nm)
- Accuracy ±10%
- Speed: Extremely fast setting of desired torque values
- Safe: Slip-over torque function which can not be overtightened - for clockwise/counterclockwise torque operation
- Torque Lock function: for high tightening and loosening moments without torque
- 817 VDE handle for Kraftform Kompakt interchangeable blades
- With Kraftform Kompakt VDE blades for square head socket screws
- VDE blades with reduced blade diameter (iS); slotted, Phillips, TORX and square head
- VDE blades (157mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: colour coding by profile and laser-engraved size indication
- Compact and stable tool box with Wera 2go compatibility
- Tool set for switch cabinet couplings: includes one Safe-Torque Speed torque screwdriver with five quickly selectable tightening torque values, one 817 VDE bitholding screwdriver and 9 VDE blades
- Individually tested: each Kraftform Kompakt VDE set has been tested individually at 10,000V, in accordance with IEC 60900. This ten-times-higher testing load guarantees safe working at their maximum permitted load of 1,000V

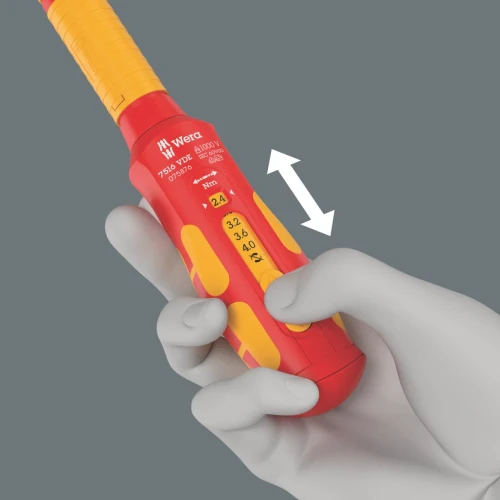

- Quick torque setting: the selectable tightening torques of the Safe-Torque Speed 7516 VDE screwdrivers are quickly set via the slide switch
- Safe torque transfer: the slip-over torque mechanism for clockwise/counterclockwise torque operation of the 7516 VDE Safe-Torque Speed torque screwdriver prevents unintentional application of excessive torque

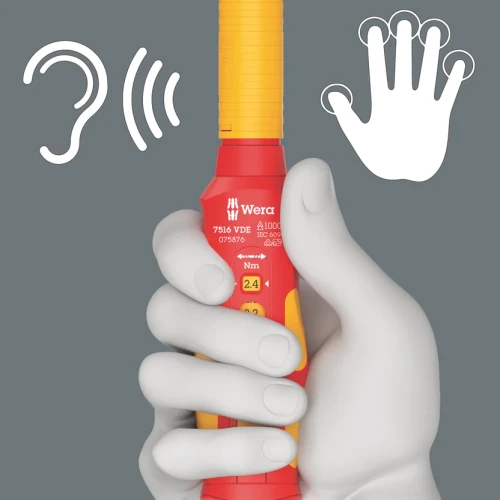

- Excess-load signal: the clearly audible and tactile slip-over mechanism of the Safe-Torque Speed torque wrenches signals when the set torque is reached
- Handle/interchangeable blade system: allows rapid exchange of the blades required for a wide range of applications
Specifications:
- Part number: 05006635001
- Pieces: 11
- Torque presets: 2.4, 2.8, 3.2, 3.6, 4.0Nm
- Accuracy: ±10%
- Testing: individually tested at 10,000V as per IEC 60900
- Blade length: 157mm
- Application: Electrical / VDE
- Product dimensions: 235 x 165 x 65mm
- Product weight: 860g
Includes:
- (1) 7516 VDE Kraftform Safe-Torque Speed torque screwdriver, 2.4-4.0Nm, 192mm
- (1) 817 VDE Kraftform blade-holding handle, 98mm
- (1) Kraftform Kompakt VDE 62 iS Take it easy, PH1 x 157mm
- (1) Kraftform Kompakt VDE 62 iS Take it easy, PH2 x 157mm
- (1) Kraftform Kompakt VDE 60 iS Take it easy, 0.6 x 3.5 x 157mm
- (1) Kraftform Kompakt VDE 60 iS Take it easy, 0.8 x 4 x 157mm
- (1) Kraftform Kompakt VDE 67 iS TORX Take it easy, TX15 x 157mm
- (1) Kraftform Kompakt VDE 67 iS TORX Take it easy, TX20 x 157mm
- (1) Kraftform Kompakt VDE 67 iS TORX Take it easy, TX25 x 157mm
- (1) Kraftform Kompakt VDE 68 iS Take it easy, #1 x 157mm
- (1) Kraftform Kompakt VDE 68 iS Take it easy, #2 x 157mm
- (1) Hook and loop fastener strip, 120 x 50mm
